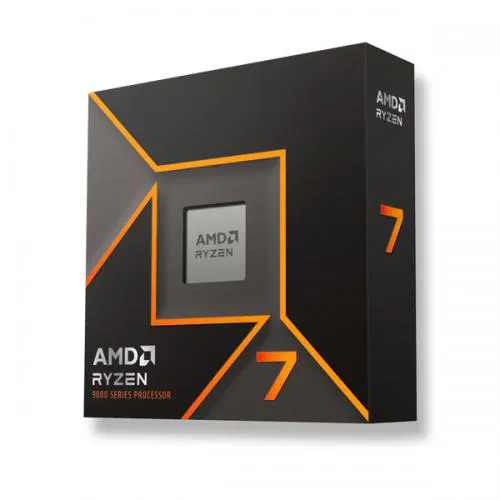

AMD Ryzen 7 9700X Processor with Radeon Graphics

🔥 AMD Ryzen™ 7 9700X Processor | Zen 5 Architecture | PCIe 5.0 | Radeon™ Graphics

🔧 Core Specs

• 💼 Model: AMD Ryzen™ 7 9700X

• 🏷️ Series: Ryzen 9000 Desktop Series

• 🧬 Architecture: Zen 5 (Codename: Granite Ridge)

• 🧠 Cores / Threads: 8 Cores / 16 Threads

• ⏱️ Base Clock: 3.8 GHz

• 🚀 Boost Clock: Up to 5.5 GHz

• 🔓 Unlocked: Yes (Overclocking Supported)

📦 Cache & Efficiency

• 🧮 L1 Cache: 640 KB

• 📥 L2 Cache: 8 MB

• 📦 L3 Cache: 32 MB

• 💡 Default TDP: 65W

• 🧊 Cooler Included: ❌ Not Included

• 🧊 Recommended Cooler: Premium Air Cooler

🧠 Memory Support

• 🧠 Type: DDR5

• 📶 Max Memory Speed:

  • 2x1R / 2x2R DDR5-5600

  • 4x1R / 4x2R DDR5-3600

• 🧠 Channels: Dual

• 🧮 Max Memory Capacity: 192 GB

• ✔️ ECC Memory Support: Yes (Motherboard dependent)

• 💥 AMD EXPO™ Memory Overclocking: Yes

🎮 Graphics Onboard

• 🎨 Integrated GPU: AMD Radeon™ Graphics

• 🧩 Graphics Core Count: 2

• 🔄 Frequency: 2200 MHz

• 🔌 USB-C DisplayPort Alt Mode: Yes

🔌 Connectivity & Expansion

• 🔗 PCI Express Version: PCIe 5.0

• 🛠️ Native PCIe Lanes: 28 Total / 24 Usable

• 🔌 USB Ports:

  • 4x USB 3.2 Gen 2 (10Gbps)

  • 1x USB 2.0

• 💽 NVMe Support: Boot, RAID 0/1/5/10

• 📦 Supported Chipsets:
  A620, B650, B650E, X670, X670E, X870, X870E

🧠 Technology & Features

• 🧠 Manufacturing Node:

  • CPU Cores: TSMC 4nm FinFET

  • I/O Die: TSMC 6nm FinFET

• 🎯 AMD Features:

  • Precision Boost 2

  • Precision Boost Overdrive

  • Curve Optimizer

  • Ryzen™ Master Support

  • AMD EXPO™ Technology

• 🧠 Instruction Set: x86-64

• 📦 Supported Extensions:
  AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX+, SHA, SSE, SSE2, SSE3, SSE4.1/4.2/A, SSSE3

🌡️ Thermal & OS Compatibility

• 🔥 Max Operating Temperature: 95°C

• 🖥️ OS Support:

  • Windows 11/10 (64-bit)

  • RHEL x86 (64-bit)

  • Ubuntu x86 (64-bit)

✅ Warranty

• 🛡️ 3-Year Manufacturer Warranty

⚠️ Please Note:

Images are for representation purposes only. Features, price, and specifications are subject to change without prior notice.
