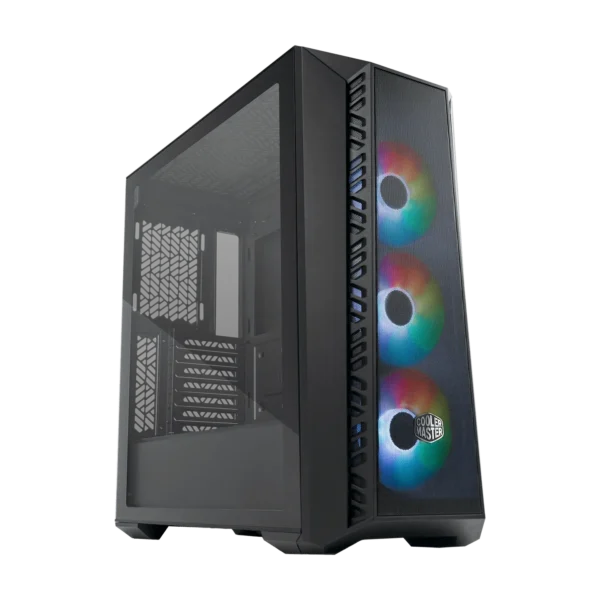

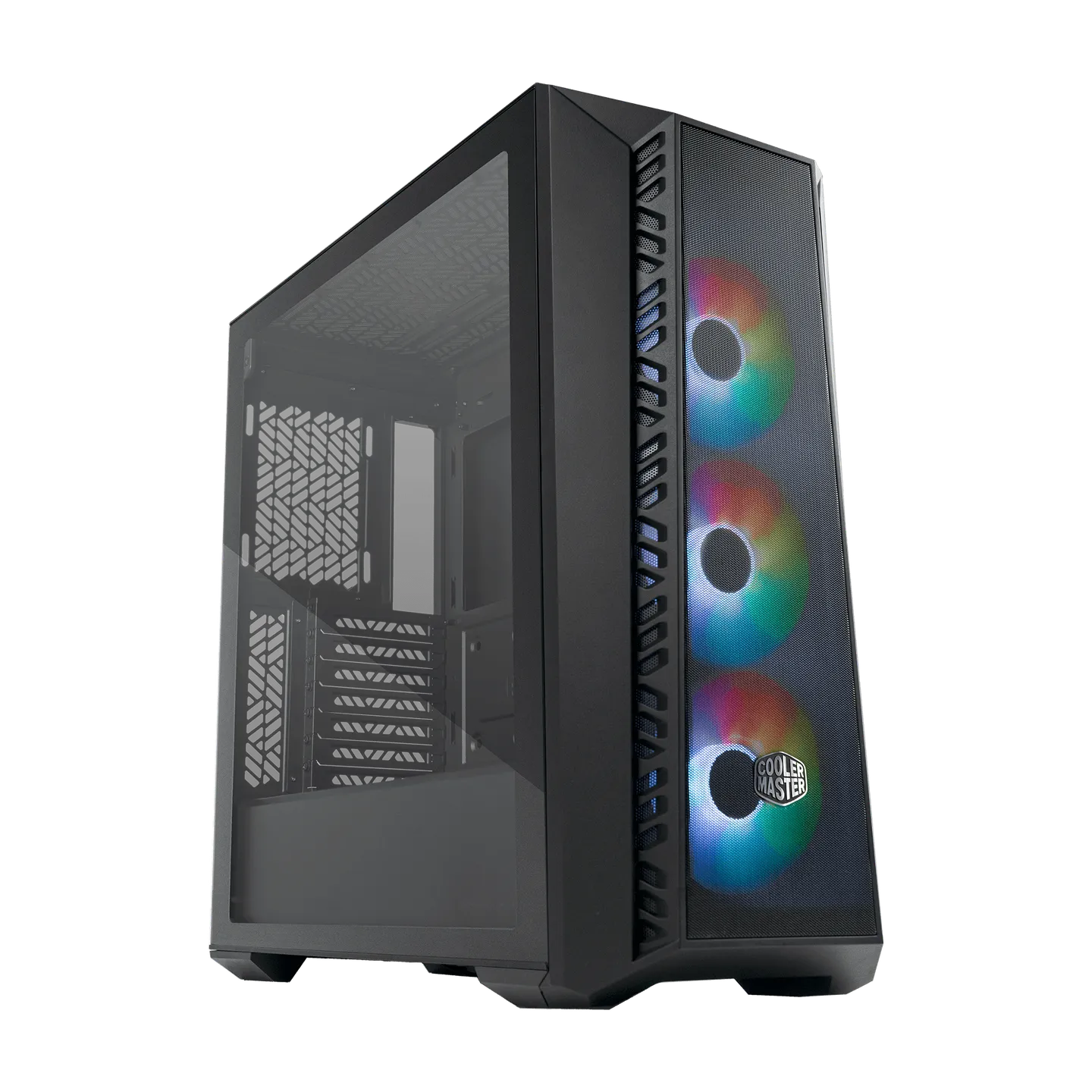

🌀 Cooler Master MasterBox 520 Mesh – Airflow Unleashed
Breathe life into your next build with the MasterBox 520 Mesh, designed for gamers and builders who demand both style and performance. Featuring a fine mesh front panel and ARGB lighting, this case is all about high airflow, bold looks, and total customization. 💨💡
🧩 Key Features at a Glance
🖤 Sleek Mesh Design – Available in Black and White, the mesh front panel not only looks 🔥 but boosts airflow like a pro.
🌀 Excellent Cooling Out of the Box – Comes with 3x CF120 ARGB fans pre-installed in front for vibrant aesthetics and optimal cooling.
🛠️ Spacious Interior – Fits E-ATX motherboards, 410mm GPUs, 165mm CPU coolers, and dual 360mm radiators (top + front).
🎮 Built for Performance – Supports up to 7 fans and multiple radiator configurations for serious thermal management.
🔌 Next-Gen Connectivity – Includes USB 3.2 Gen 2 Type-C, audio combo jack, and ARGB control button on the top I/O panel.
💾 Flexible Storage – Mount up to 2x 3.5” HDDs and 3x 2.5” SSDs to keep your games and files ready to roll.
🧼 Dust-Proof by Design – With removable dust filters on the front, top, and bottom, your rig stays clean and cool.
💡 Included ARGB Hub – Manage your lighting easily with the bundled ARGB fan hub.
🏆 Why Choose the MasterBox 520 Mesh?
-
✅ Mid Tower Case with tons of clearance and top-notch compatibility
-
✅ Tool-free tempered glass side panel to flaunt your RGB masterpiece
-
✅ Ready for high-end components with max airflow and style
🔥 MasterBox 520 Mesh — where airflow meets attitude. Build bigger, run cooler, and look better doing it. 🔧🎨
📦 Product Specifications – MasterBox 520 Mesh
🔢 Model Number
-
MB520-KGNN-S00 (Black)
-

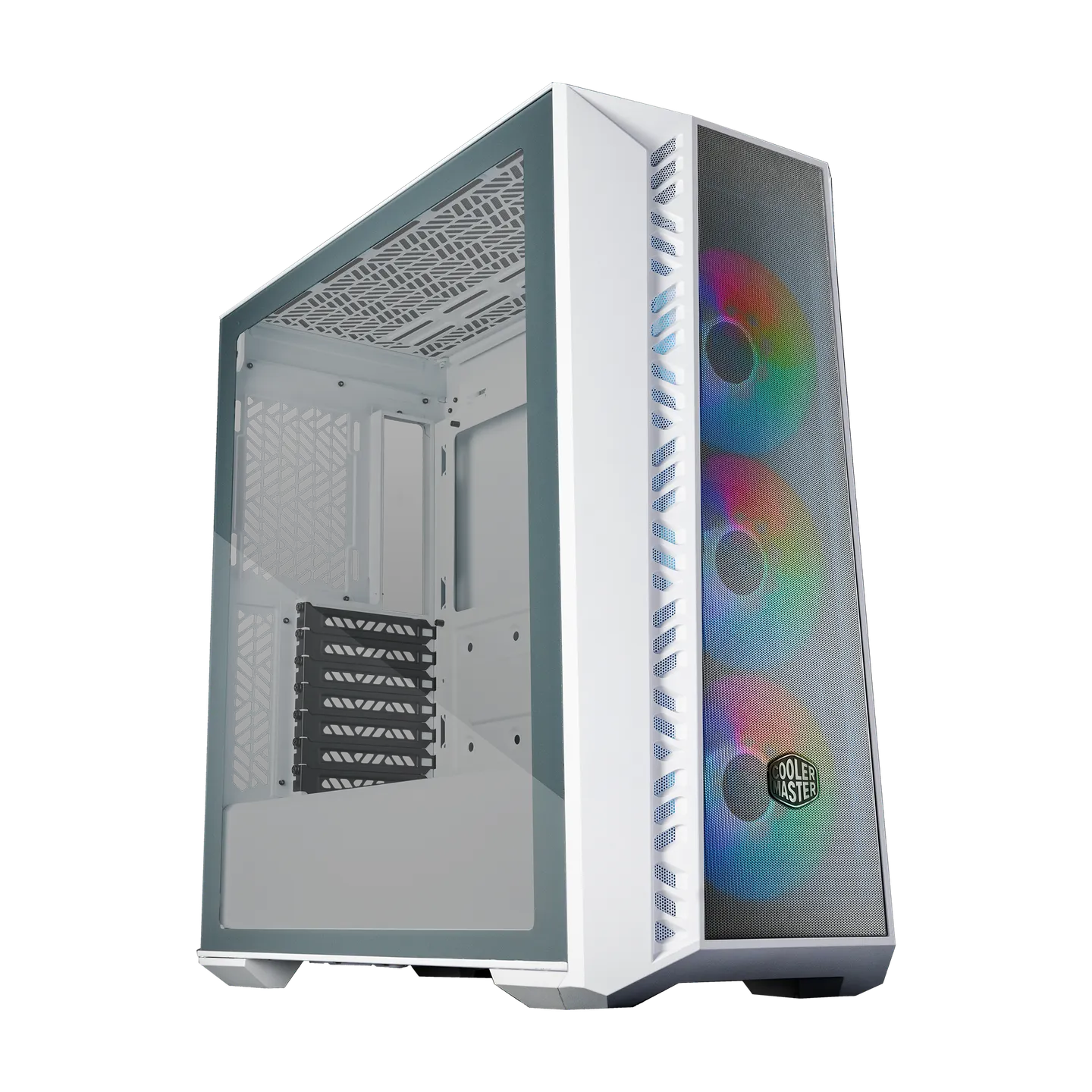

MB520-WGNN-S00 (White)
🎨 Exterior Color
-
Black
-
White
🧱 Materials
-
Exterior: Mesh, Steel, ABS Plastic, Tempered Glass
-
Left Side Panel: Tempered Glass
📏 Dimensions (L x W x H)
-
499 x 210 x 498 mm (Including protrusions)
-
430 x 210 x 479 mm (Body only)
🧩 Motherboard Support
-
Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX*
(*Up to 12″ x 10.7″, may affect cable management)
📦 Expansion & Drive Bays
-
Expansion Slots: 7
-
3.5″ Drive Bays: 2
-
2.5″ Drive Bays: 3
🔌 I/O Panel
-
1x USB 3.2 Gen 1 Type-A
-
1x USB 3.2 Gen 2 Type-C
-
1x 3.5mm Headset Jack (Audio+Mic)
-
1x Reset / ARGB button
🌀 Cooling System
-
Pre-installed Front Fans: 3x CF120 ARGB
-
Top Fan Support: 3x 120mm / 2x 140mm
-
Front Fan Support: 3x 120mm / 2x 140mm
-
Rear Fan Support: 1x 120mm
💧 Radiator Support
-
Top: 120 / 140 / 240 / 280 / 360 mm (Max thickness: 55mm)
-
Front: 120 / 140 / 240 / 280 / 360 mm
-
Rear: 120 mm
📐 Clearances
-
CPU Cooler: Up to 165mm
-
GPU: Up to 410mm
-
PSU: Recommended up to 170mm (Max 200mm)
🧼 Dust Filters
-
Front, Top, Bottom
⚡ Power Supply Support
-
ATX (Bottom Mount)
📦 Included Accessories
-
ARGB Fan Hub
🏷️ Series
-
MasterBox Series
🏠 Case Size
-
Mid Tower
🛡️ Warranty
-
2 Years
