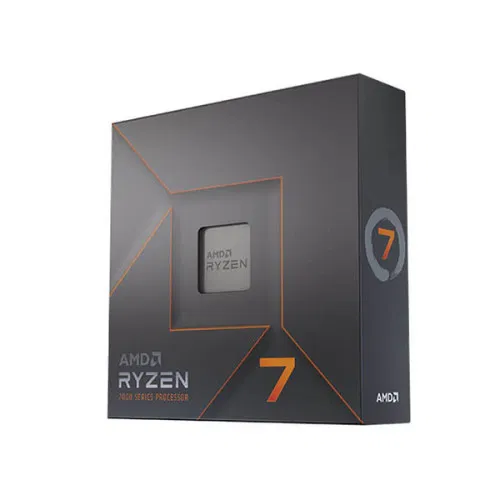

AMD Ryzen 7 7700X Processor with Radeon Graphics

🔥 AMD Ryzen™ 7 – Zen 4 Power for Enthusiasts

• 💻 Platform: Desktop

• 📦 Product Line: AMD Ryzen™ 7 Desktop Processors

• 🧠 Architecture: Zen 4 (“Raphael AM5”)

• 🌍 Market Segment: Enthusiast Desktop – Globally Available

• 🧮 Cores / Threads: 8 Cores, 16 Threads

• ⏱️ Base Clock: 4.5 GHz

• 🚀 Max Boost Clock: Up to 5.4 GHz

• 🧩 Cache: L1 – 512KB | L2 – 8MB | L3 – 32MB

• 🔓 Unlocked for Overclocking: ✅ Yes

• 🔥 TDP: 105W

• 🧠 Socket: AM5

🧬 Advanced Features

• ✅ AMD EXPO™ Memory Overclocking

• ✅ Precision Boost 2 + Overdrive

• ✅ Curve Optimizer Support

• ✅ AMD Ryzen™ Master Utility

• ✅ AVX512 Instruction Set Support

• ✅ ECC Memory Support (Motherboard Dependent)

🎮 Graphics Capabilities

• 🖥️ Integrated GPU: Yes – AMD Radeon™ Graphics

• 🔢 Graphics Core Count: 2

• 🎯 GPU Frequency: 2200 MHz

• 🔌 USB-C DisplayPort Alt Mode: Supported

🧰 Connectivity & Expansion

• 💾 PCIe Version: PCIe 4.0 (28/24 usable lanes)

• 🔗 USB Ports:

  • 4x USB 3.2 Gen 2 (10Gbps)

  • 1x USB 2.0

  • USB Type-C® Supported

• 💽 SATA: Native support not included

• 💡 NVMe Support: Boot, RAID 0/1/10

💾 Memory Support

• 🧠 Memory Channels: Dual Channel DDR5

• 📈 Max Memory: 128GB

• 🚀 Speeds Supported:

  • 1x1R / 1x2R: Up to 5200 MT/s

  • 2x1R / 2x2R: Up to 3600 MT/s

🔧 Compatible Chipsets

• ✅ AMD X670E / X670 / B650E / B650 / A620

🛡️ Warranty

• 🗓️ 3 Years Manufacturer Warranty

⚠️ Note:

Specifications, features, and pricing are subject to change without notice.
