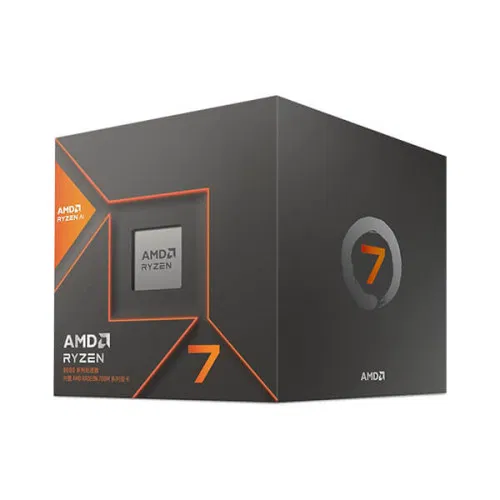

AMD Ryzen 7 8700G Processor with Radeon Graphics

🧠 AMD Ryzen™ 7 8700G Desktop Processor | Zen 4 | Radeon™ 780M Graphics

🔧 Processor Highlights

• 💼 Model: AMD Ryzen™ 7 8700G

• 🔩 Platform: AM5 Desktop

• 🧬 Architecture: Zen 4 (Codename: Phoenix)

• 🧠 Cores / Threads: 8 Cores / 16 Threads

• ⏱️ Base Clock: 4.2 GHz

• 🚀 Max Boost Clock: Up to 5.1 GHz

• 💾 Cache: 8MB L2 + 16MB L3 (Total: 24MB)

• 🔓 Unlocked for Overclocking: Yes

• 🔥 TDP: 65W (Configurable 45–65W)

• 🛠️ Manufacturing Process: TSMC 4nm FinFET

🧠 Memory & Expansion

• 📦 Max Memory Support: Up to 256 GB DDR5

• 🔄 Memory Channels: Dual Channel (2x DIMMs)

• 🚅 Max Memory Speed:

  • 2x1R / 2x2R DDR5-5200

  • 4x1R / 4x2R DDR5-3600

• 🔗 PCIe Version: PCIe® 4.0

• 🧩 PCIe Lanes: 20 Total (16 Usable)

🎮 Integrated Graphics

• 🎨 GPU: AMD Radeon™ 780M

• 🔢 Graphics Cores: 12

• 🚀 GPU Frequency: Up to 2900 MHz

• 🖥️ Display Support:

  • HDMI 2.1 & DisplayPort 2.1

  • Up to 4 simultaneous displays

  • Max Resolution: 8K @ 60Hz

  • Max Refresh Rate: 1080p @ 600Hz

• 🆓 FreeSync™: Yes

• 🪟 Wireless Display: Miracast

• 🧠 AI Engine: Ryzen AI – Up to 16 TOPS

🔌 Connectivity

• 🔗 USB Ports:

  • 2x USB4 (40 Gbps)

  • 2x USB 3.2 Gen 2 (10 Gbps)

  • 1x USB 2.0

• 💽 NVMe RAID Support: RAID 0 / 1

• 🖥️ USB-C DisplayPort Alt Mode: Yes

📽️ Multimedia

• 🎥 Video Encode: H.264, H.265, AV1 (up to 8K)

• 📺 Video Decode: MPEG2, VC1, VP9, H.264, H.265, AV1 (up to 8K)

• 📦 Smart Access Memory: Supported

🛡️ Additional Features

• ✔️ AMD EXPO™ & Ryzen™ Master Support

• ✔️ Precision Boost Overdrive & Curve Optimizer

• 🧊 Cooler Included: Not Included

• 🕹️ Best For: High-performance desktops with integrated graphics

✅ Warranty

• 🛡️ 3 Years Manufacturer Warranty

⚠️ Note

Specifications and features are subject to change without notice. Images are for representation purposes only.
