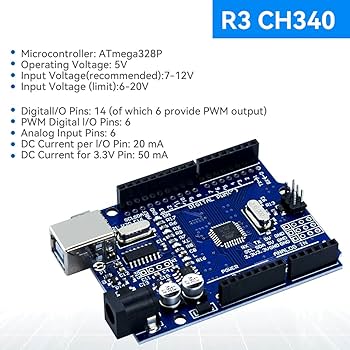

Uno R3 CH340G ATmega328p Development Board Compatible with Arduino
5 in stock
₹226.00 ₹250.00
- Microcontroller ATmega328 (SMD) – Interface CH340G
2. Operating Voltage: 5V
3. Input Voltage (recommended): 7-12V
4. Input Voltage (limits): 5-20V
5. Digital I / O Pins 14 (of which 6 provide PWM output)
6. Analog Input Pins: 6
While this is a clone board, upgrade to the Official Arduino UNO R4 EK Minima — now ₹100 OFF! Use Coupon code UNO100 at checkout.
5 in stock

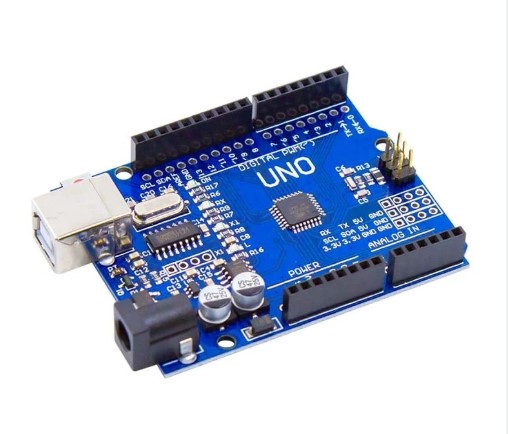

The Uno R3 CH340G ATmega328p Development Board is the low-cost version of the popular Uno R3 Arduino. It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip.
We have used plenty of these low-cost Arduino boards with CH340 chips, and have found them to work perfectly. The only time the CH340 chip is used is during programming and when using the serial output of the USB port. During normal operation, this board is identical to the more expensive version without CH340 chip.
Why Consider the Official Boards?
| Feature | Official Arduino Boards | Clone Boards |
| Warranty | ✅ 1-Year Official Warranty | ❌ None / Limited |
| Build Quality | ✅ High-Grade Components | ⚠️ Varies |
| Software Support | ✅ 100% Compatible | ⚠️ May Face Issues |
| Firmware Updates | ✅ Regular Official Releases | ❌ Rare / None |
| Durability | ✅ Long Lifespan & Support | ⚠️ Shorter Life |
How to use:
1. Download the IDE Arduino Link: Click Here 2. Download the USB chip driver Link: Click Here 3. Plug in UNO development board, the driver will be installed automatically 4. Select the UNO from the die 5. Select the COM port 6. The best choice first, Arduino comes with routine procedures, burn into it.
Package Includes :
1 x Uno R3 CH340G ATmega328p Development Board Compatible with Arduino 1 x set of male Jumper Header.
| Item Type: | Development Board |
| Board Type: | Uno |
| Chip Type: | ATmega328P |
| Microcontroller: | ATmega328 (SMD) – Interface CH340G |
| Operating Voltage (VDC): | 5 |
| Input Voltage (V): | 7-12V |
| Input Voltage (limit) | 6-20V |
| Analog I/O Pins | 6 |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins | 6 |
| DC Current for 3.3V Pin(mA) | 50 |
| DC Current per I/O Pin (mA) | 40 |
| Clock Speed | 16 MHz |
| SRAM | 2 |
| EEPROM | 1 KB (ATmega328) |
| Flash Memory: | 32 KB |
| Power Supply Option | DC Jack or USB |
| On Board LED | On/Off, L (PIN 13), TX, RX |
| Operating Temperature (°C): | -40 to 90 |
| Dimensions (L x W x H) mm | 75 x 54 x 12 |
| Weight (g): | 26 |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 10 × 6 × 4 cm |
